On-Grid Solar System Wiring Diagram PDF
An on-grid solar system wiring diagram is a visual representation of the connections between the solar panels, inverter, and electrical grid. It shows how the solar panels are wired in series or parallel to maximize power output and illustrates the necessary connections to the grid.
Introduction
Harnessing the power of the sun to generate electricity for your home is a fantastic way to reduce your carbon footprint and save money on your energy bills. On-grid solar systems, also known as grid-tied solar systems, are an increasingly popular choice for homeowners looking to embrace renewable energy. These systems are designed to feed excess solar energy back into the grid, allowing you to offset your electricity consumption and potentially earn credits for the energy you generate.
Understanding the wiring diagram of an on-grid solar system is crucial for both homeowners and installers. This diagram serves as a blueprint for connecting the various components of the system, ensuring safe and efficient operation. It outlines the pathways for electricity flow, from the solar panels capturing sunlight to the inverter converting direct current (DC) to alternating current (AC) for use in your home. The diagram also highlights the critical connections to the electrical grid, which enables the system to feed excess power back into the public network.
This guide will delve into the essential components of an on-grid solar system wiring diagram, explaining the purpose and function of each element. We will explore the different types of connections, including series, parallel, and hybrid configurations, and discuss the role of string inverters and microinverters in managing energy flow. By understanding the intricacies of these diagrams, you can gain valuable insights into the workings of your on-grid solar system, ensuring its optimal performance and maximizing your investment in renewable energy.
Components of an On-Grid Solar System
An on-grid solar system comprises several key components that work harmoniously to convert sunlight into usable electricity and feed it back into the grid. Understanding the role of each component is essential for comprehending the wiring diagram and ensuring the system operates efficiently.

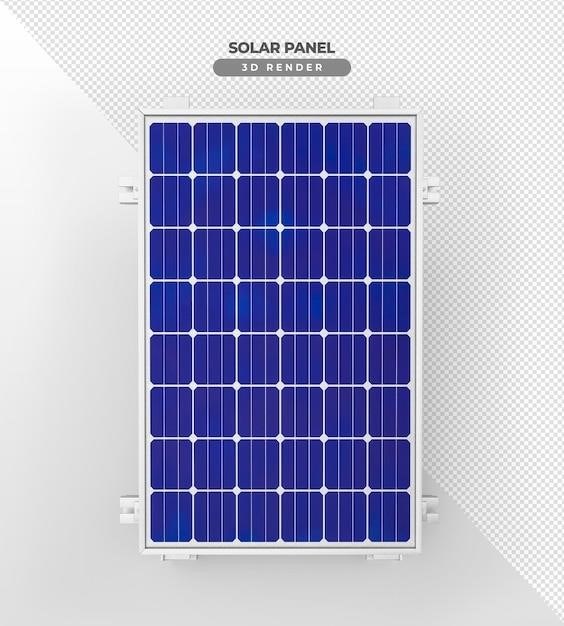

Solar Panels⁚ These are the heart of the system, responsible for capturing sunlight and converting it into direct current (DC) electricity through the photovoltaic effect. Solar panels are typically arranged in arrays, with multiple panels connected together to increase overall power output.
Inverter⁚ The inverter is the crucial component that transforms the DC electricity generated by the solar panels into alternating current (AC) electricity, compatible with your home’s electrical system and the grid. It also manages the flow of energy, ensuring a smooth transfer between the solar panels and the grid.
Meter⁚ The meter tracks the amount of energy generated by the solar panels and consumed by your home. It also monitors the amount of energy fed back into the grid. This data helps you track your energy usage and savings.
Grid Connection⁚ The grid connection is the link between your solar system and the public electricity network. This allows excess energy generated by your solar panels to be fed back into the grid and utilized by other consumers. It also provides a backup power source in case of power outages.
Safety Devices⁚ These include fuses, circuit breakers, and ground fault circuit interrupters (GFCIs), which are essential safety measures to protect the system and its users from electrical hazards. They prevent overloads, short circuits, and ground faults.
Wiring Diagram Basics
An on-grid solar system wiring diagram is a visual representation of the connections between the solar panels, inverter, and electrical grid. It serves as a blueprint for the system’s installation, ensuring proper connections and safe operation. Understanding the basic elements of a wiring diagram is crucial for both installers and homeowners.
The diagram typically uses standardized symbols to represent each component, making it easy to interpret. For example, solar panels are represented by a rectangle with arrows indicating the direction of current flow, while the inverter is often depicted as a square with an “AC” symbol. Wires are shown as lines connecting these symbols, with their thickness indicating the wire gauge.
The diagram also includes labels for each component, such as “Solar Panel Array,” “Inverter,” and “Grid Connection.” This ensures clarity and aids in identifying the various parts of the system.
Important information is often included in the diagram, such as the voltage and amperage ratings of the components, the type of connections (series or parallel), and the size of the conductors. This data is essential for ensuring compatibility between components and ensuring the system operates within safe limits.
In addition to the basic components, the diagram may also show optional elements like disconnects, fuses, and circuit breakers, which are crucial for safety and system protection. The diagram serves as a comprehensive guide for installers, allowing them to understand the system’s configuration and ensure proper installation.
Series vs. Parallel Connections
In an on-grid solar system wiring diagram, the arrangement of solar panels in series or parallel plays a crucial role in determining the system’s voltage and current output. Understanding the differences between these two connection types is essential for optimizing system performance and ensuring compatibility with the grid.
Series connections involve connecting the positive terminal of one solar panel to the negative terminal of the next, forming a chain. This configuration increases the overall voltage of the system while maintaining the same current. However, series connections can lead to higher voltage levels that might exceed the inverter’s input rating, requiring careful consideration of the number of panels connected in series.
Parallel connections, on the other hand, involve connecting all the positive terminals of the panels together and all the negative terminals together. This configuration increases the current output while maintaining the same voltage. Parallel connections are advantageous for systems with lower voltage requirements and can accommodate a larger number of panels compared to series connections.
Choosing the appropriate connection type depends on the specific system requirements, such as the voltage rating of the inverter, the number of panels, and the desired current output.
Series connections are often preferred for systems with higher voltage requirements, while parallel connections are suitable for systems with lower voltage requirements and a need for higher current output.
The wiring diagram clearly depicts the chosen connection type, allowing installers to understand the system’s voltage and current characteristics and ensure proper operation.
Hybrid Wiring Configurations
Hybrid wiring configurations, also known as series-parallel connections, combine the benefits of both series and parallel wiring to optimize the performance of solar panel arrays. These configurations are particularly advantageous for larger systems where balancing voltage and current output is essential.
In a hybrid configuration, solar panels are first connected in series to increase the voltage, and then multiple series strings are connected in parallel to increase the current. This approach allows for greater flexibility in accommodating different panel configurations and system requirements.
For example, a hybrid configuration might involve connecting two strings of four panels in series, with each string then connected in parallel. This creates a system with a higher voltage output than a purely parallel configuration, while still maintaining a manageable current level.
Hybrid wiring configurations offer several advantages⁚
Optimized Output⁚ By combining series and parallel connections, hybrid configurations enable installers to fine-tune the system’s voltage and current output to match the inverter’s specifications and maximize power generation.
Shade Mitigation⁚ Hybrid configurations can help mitigate the negative impacts of shade on solar panel arrays. By dividing the panels into multiple strings, shading on one string will not significantly affect the output of other strings.
Increased Flexibility⁚ Hybrid wiring offers greater flexibility in accommodating different panel sizes and configurations, allowing installers to design systems that meet specific requirements;
On-grid solar system wiring diagrams that utilize hybrid configurations clearly illustrate the series and parallel connections, providing installers with a comprehensive understanding of the system’s electrical characteristics.
String Inverters
String inverters are the heart of traditional on-grid solar systems, responsible for converting the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity that can be used in homes or businesses. These inverters are typically connected to a string of solar panels, hence the name “string inverter”.
The number of panels connected to a single string inverter can vary depending on the inverter’s capacity and the specific system design. String inverters work by monitoring the voltage and current output of the connected solar panels and adjusting the conversion process accordingly. This ensures that the maximum amount of energy is harvested from the solar panels and efficiently delivered to the grid.
On-grid solar system wiring diagrams clearly depict the connection between the string inverter and the solar panels, highlighting the series or parallel configuration of the panels within the string. These diagrams also show the connection between the inverter and the grid, indicating the necessary safety features, such as circuit breakers and disconnects.
Here are some key advantages of using string inverters in on-grid solar systems⁚
Cost-Effectiveness⁚ String inverters are typically more affordable than microinverters, making them an attractive option for budget-conscious homeowners.
Simplicity⁚ String inverters are relatively straightforward to install and maintain, requiring fewer components and connections compared to microinverter systems.
Efficiency⁚ String inverters are highly efficient at converting DC to AC electricity, ensuring maximum energy output from the solar panels.
However, it’s important to note that string inverters can have limitations, particularly in systems with partial shading. If one panel in the string is shaded, it can affect the output of the entire string.
Microinverters
Microinverters represent a more recent advancement in solar technology, offering a distinct approach to DC to AC conversion compared to traditional string inverters. Instead of a single inverter handling the entire string of solar panels, each individual solar panel in a microinverter system has its own dedicated microinverter. This means that each panel operates independently, converting DC to AC at the module level.
Microinverters are typically installed on the back of each solar panel, simplifying the overall wiring configuration. On-grid solar system wiring diagrams for microinverter systems showcase the individual connections between each panel and its microinverter, along with the connection of the microinverters to the main grid connection point. This allows for a more granular view of the energy flow within the system.
Microinverters offer several advantages over string inverters, particularly in situations with partial shading or uneven panel performance.
Improved Performance⁚ Microinverters optimize the energy output of each panel individually, ensuring maximum energy generation even if some panels are shaded. This leads to higher overall system efficiency.
Enhanced Reliability⁚ Since each panel has its own microinverter, a failure in one panel does not affect the performance of the other panels. This increases the overall system reliability.
Simplified Monitoring⁚ Microinverters provide detailed performance data for each individual panel, enabling homeowners to monitor their system’s performance and identify any potential issues.
While microinverters offer several benefits, they are generally more expensive than string inverters. The added cost of microinverters needs to be weighed against the potential for increased energy production and system reliability.
Solar Panel Array Design
The design of your solar panel array is crucial for maximizing energy output and ensuring optimal system performance. It’s a critical element that influences the overall efficiency and effectiveness of your on-grid solar system.
An on-grid solar system wiring diagram is a valuable tool for visualizing the arrangement of solar panels and their connections. It provides a blueprint for understanding how panels are wired together in series or parallel to achieve the desired voltage and current levels. The diagram also highlights the connection points for the inverter and the electrical grid.
When designing your solar panel array, several factors come into play⁚
Orientation and Tilt⁚ The angle of the panels relative to the sun’s path significantly impacts energy production. Optimal orientation and tilt angles vary depending on your location’s latitude and the time of year.
Shading⁚ Shade can dramatically reduce the output of solar panels. It’s essential to minimize shading from trees, buildings, or other obstructions. The wiring diagram helps identify potential shading issues and inform the array’s design.
Panel Spacing⁚ Adequate spacing between panels allows for airflow and reduces the risk of overheating. The diagram helps visualize the spacing requirements and ensure proper airflow within the array.
Wiring Configuration⁚ Series and parallel connections are fundamental concepts in solar panel array design. The diagram visually depicts the chosen wiring configuration and helps understand its impact on voltage and current output.
Safety Considerations⁚ The diagram incorporates safety features like grounding and overcurrent protection devices, ensuring system safety and compliance with electrical codes.
A well-designed solar panel array, as depicted in the wiring diagram, will optimize energy production, minimize potential issues, and maximize the return on your investment.
Safety Considerations
Safety is paramount when dealing with electricity, especially high-voltage systems like on-grid solar installations. A well-designed on-grid solar system wiring diagram incorporates safety features to mitigate risks and ensure compliance with electrical codes.
The diagram should clearly illustrate the following safety considerations⁚
Grounding⁚ A proper grounding system is essential to protect against electrical shocks. The diagram should show how the solar panels, inverter, and other components are grounded to a common ground point, creating a safe path for fault currents.
Overcurrent Protection⁚ Fuses or circuit breakers are crucial for preventing overcurrents, which can damage equipment or start a fire. The diagram should indicate the placement and ratings of these protective devices.
Disconnection Devices⁚ A disconnect switch or circuit breaker should be included in the system to isolate the solar panels from the grid during maintenance or emergencies. The diagram should show the location and operation of this switch.
Arc Fault Circuit Interrupters (AFCIs)⁚ AFCIs are specialized circuit breakers designed to detect and interrupt arcing faults, which can be dangerous and lead to fires. The diagram should indicate the use of AFCIs where required by code.
Isolation Transformers⁚ In certain cases, isolation transformers might be used to separate the solar system from the grid, providing an additional layer of safety. The diagram should show the presence and operation of these transformers.
By incorporating these safety features, the on-grid solar system wiring diagram helps ensure a safe and compliant installation. Always consult with a qualified electrician for professional installation and safety advice.
